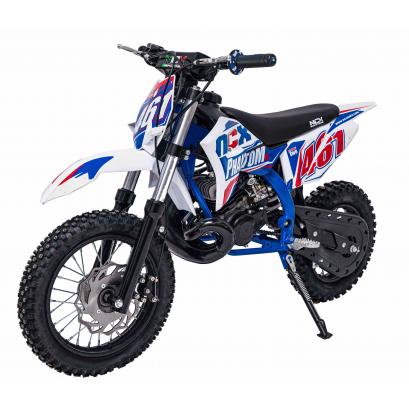

PHANTOM 50 12/10 NAC NAC DISC BRAKES

TECHNICAL FEATURES

• Engine: 2-stroke SIMIL FM - Single cylinder - Air cooled - 50cc
• Semiperimetral cradle frame
• Automatic gearbox
• Starter: Pedal
• Tyres: Ant. 60/100-12 - Post. 80/100-10
• Brakes: Front disc - Rear disc
• Front Disc 180mm 4 holes - Rear Disc 160mm 4 holes
• SILVER GLOSSY terminal
• KSH 19mm carburettor
• NGK BP7HS spark plug
• Chain Pitch 420 BLACK - CHOHO
• Swingarm 410mm
• 1.5 L tank.
• Fuel: Oil/Petrol mixture
• Wheelbase: 920mm
• Measurements: 1350x610 h840 mm
• Seat height 660 mm

SPECIAL EQUIPMENT

• Rear shock 260mm
• Splash guard Mono
• Medium bend handlebar Ø 22mm (7/8 inch)
• Telescopic fork 600mm
• Caliper connection distance 55mm
• Brake lever Aluminum
• Steering plates Aluminum
• Aluminum Handlebar Risers
• High grip saddle
• SPORT air filter
• PROTAPER high grip knobs
• High density plastics

ACCESSORIES INCLUDED

• Stickers printed on 3M
